abaqus Xflow, Co-Simulation

 출처 :https://m.blog.naver.com/PostView.nhn?blogId=vp_cae&logNo=221690929120&proxyReferer=https:%2F%2Fwww.google.com%2F

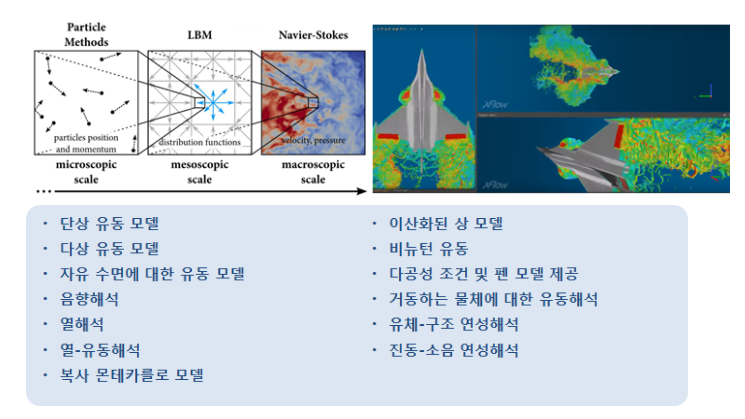

기존 : Navier-Stokes 방식

Xflow : LBM 방식 (Meshless)

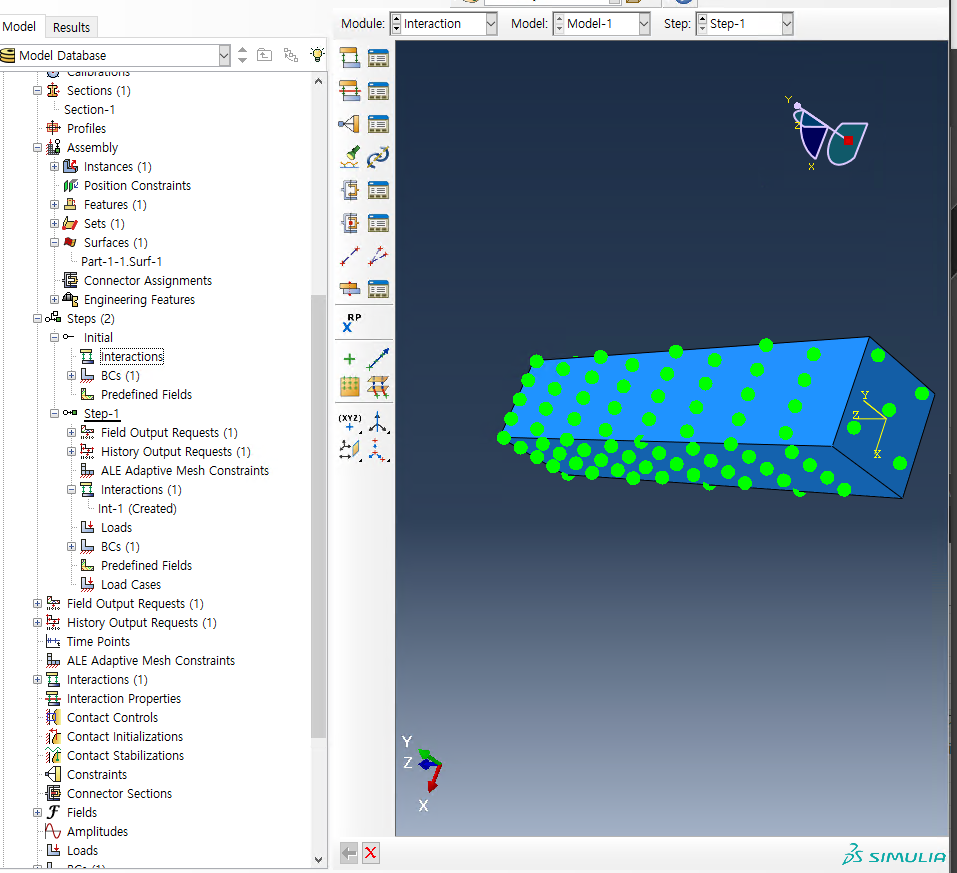

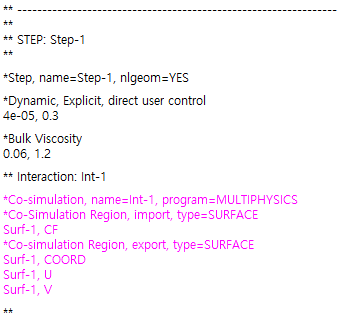

Step의 Interaction에서 설정해야 함

STL File Export // Assembly Module 에서 해야 함

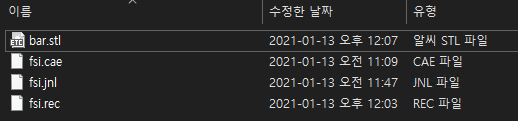

결과 파일

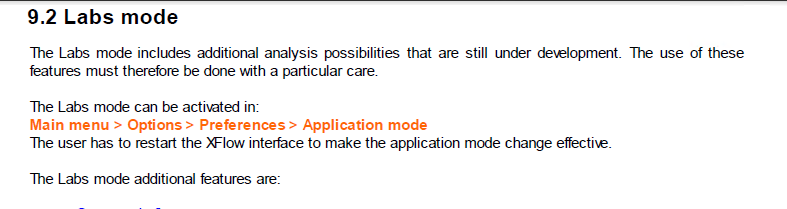

Xflow Mode 변경 필요














Co-Simulation Service Installation

C:\SIMULIA\Commands>abaqus extractCSEApi
Abaqus Warning: Keyword (dsls_license_config) must point to an existing file.
Extracting Abaqus CSE API to C:\SIMULIA\Commands\3DEXPERIENCE_R2018x_cse_api
Launcher: abq2018.bat



== Job 실행

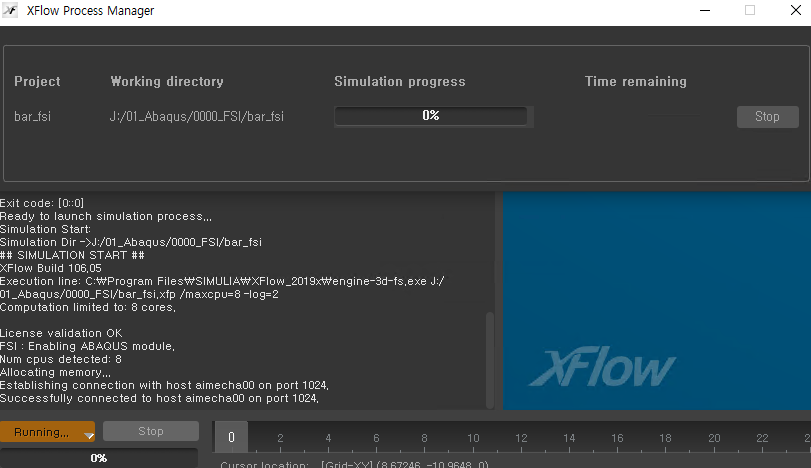

1. Xflow 에서 Run 실행


2. CMD에서 아래 명령어 실행

J:\01_Abaqus\0000_FSI>abaqus cse -configure FSI_II_std_css -listenerport 1024
Abaqus Warning: Keyword (dsls_license_config) must point to an existing file.
Abaqus Warning: Keyword (dsls_license_config) must point to an existing file.

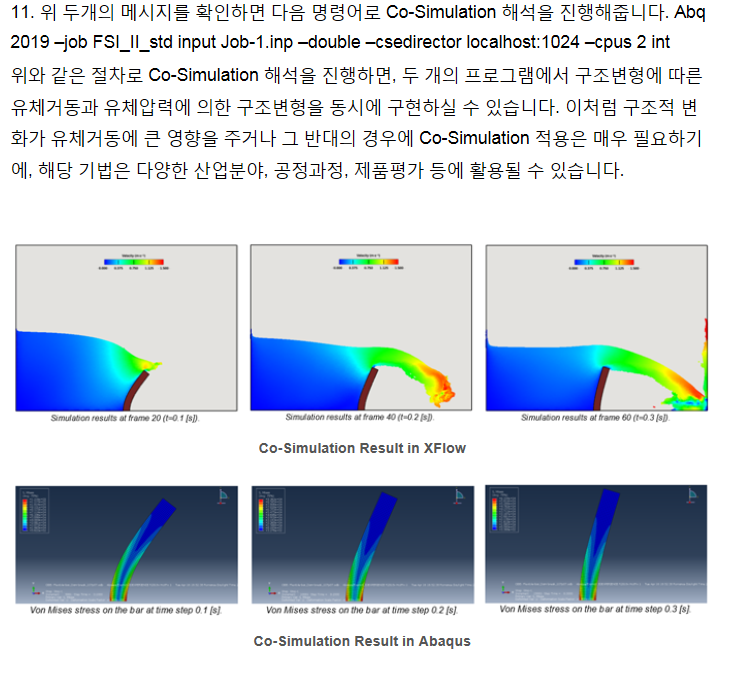

3. Co-Simulation 명령어, CMD
abaqus int -job FSI_II_std_css -input Job-1 -double -csedirector localhost:1024
